1. Description

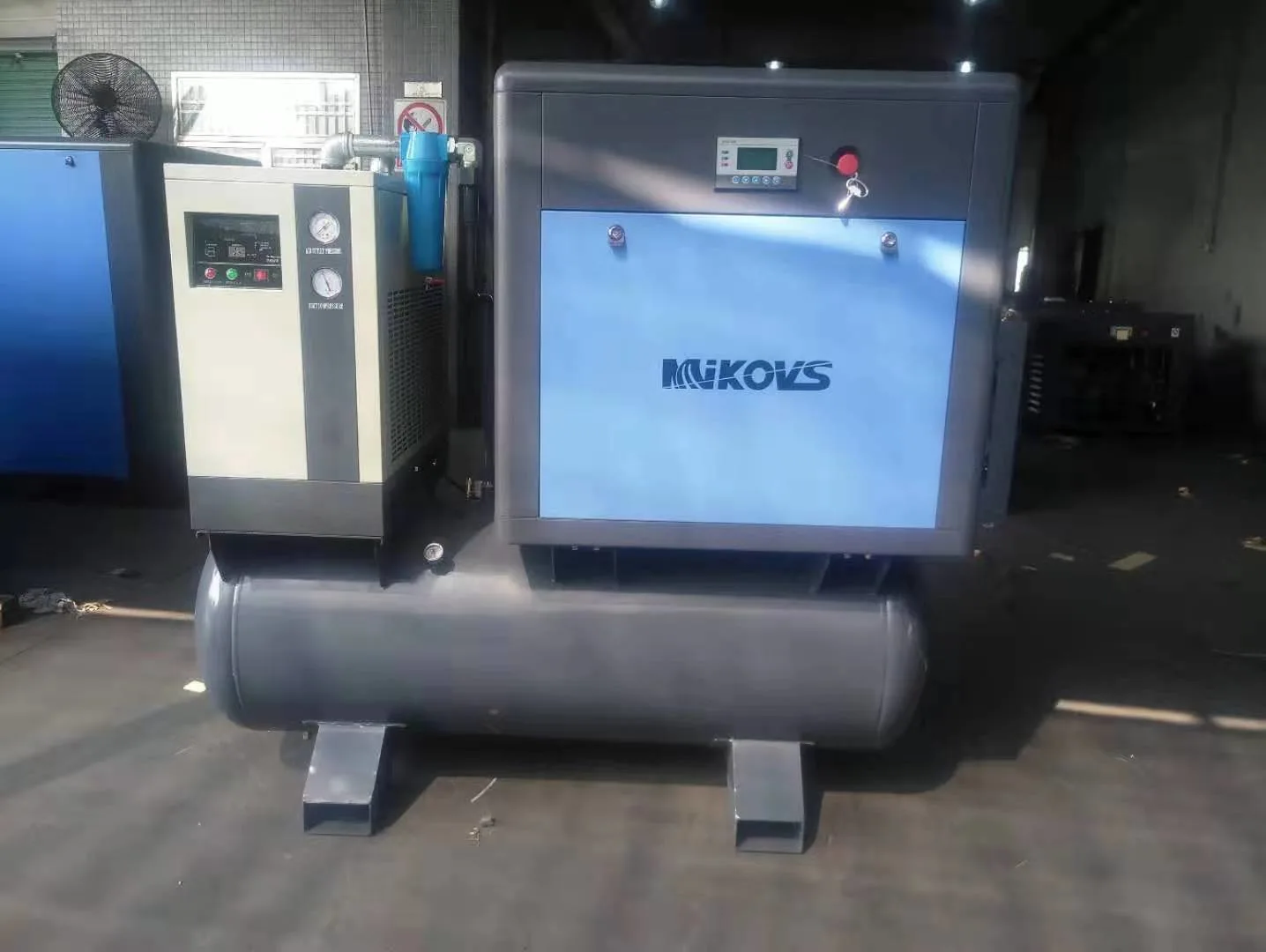

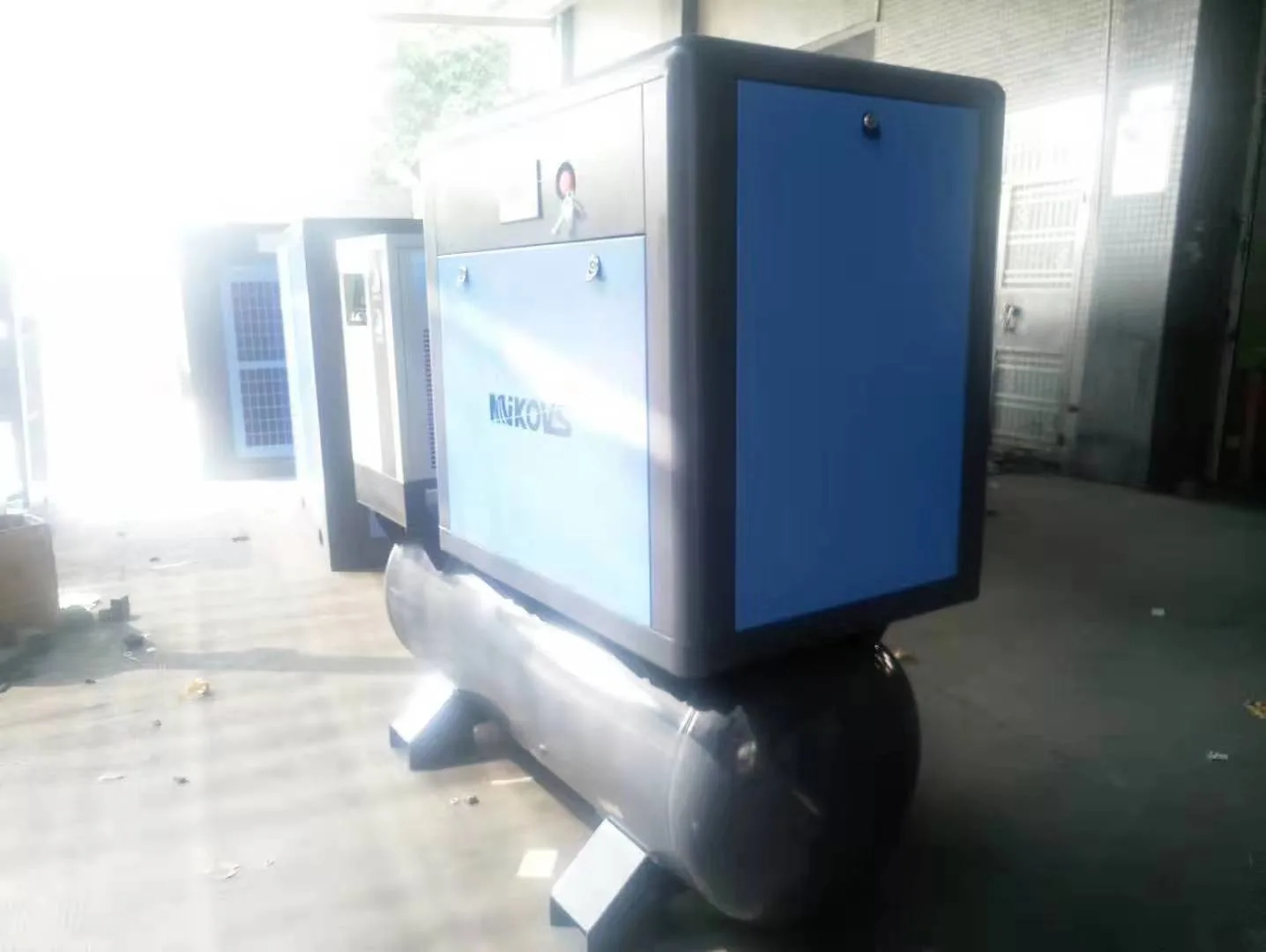

Custom Portable 3 in 1 Combined 20HP Screw Air Compressors with Germany Gu Air End Mounted 500L Air Tank Line Filter
2) Power: 15kw/20HP
3) Capacity: 2.3m3/min for 8bar
4) With air cooling or water cooling
5) Motor Efficiency Class:IE5/IE4/IE3/IE2 as per your required
6) Motor Protection Class: IP23/IP54/IP55 or as per your required
2. Detail Structure for the Screw Compressor
1) Superior Air Filter
•Superior air filter with two-stage dust removal and filtering system with efficiency of up to 99.9% even in heavy-duty environments.
•Extends the service life of the compressor parts and components, ensures high air quality.
2) Premium Efficiency Drive Motor
•Premium efficiency Totally Enclosed Fan Cooled IP54/IP55 motor (Class F insulation) protects against dust and chemicals etc.
•Long-term stable operation even in harsh environments up to 55ºC (131ºF)
3) Smart Controller
•Increased reliability: durable keyboard, user-friendly, multilingual user interface.
•Improved ease of use: intuitive navigation system with main operation conditions include warning indications, maintenance scheduling etc
4) Intelligent Control and Protection
•Schneider electrical elements with original package from Germany, safe and reliable
•Reasonable, simple and clear wiring, easy for maintenance
•Good protection function ensures the stable running of the compressor unit
5) Heavy-duty Oil Filter
•Heavy-duty oil filter with excellent oil purification capability ensures a clean and safe oil system
•Long service period and easy filter change reduce maintenance costs
6) Stainless Steel Oil Pipe & Air Pipe system
•Stainless steel High temperature resistant (400ºC =752ºF) and low temperature resistant ( -270ºC = - 518ºF), high pressure resistant
•Ultra-long life(80 years), completely leak free and maintenance free
3. Air compressor main parts and components
Air Compressor | Part name | Manufacturer | ||
1 | Air End | High Performance Rotor Profile | ||
2 | PLC Controller IC | Schneider | ||
3 | PLC Display | Schneider | ||
4 | Suction Valve | VMC Italy | ||
5 | Min Pressure Valve | VMC Italy | ||
6 | Temperature-sensing Valve | VMC Italy | ||
7 | Air Filter | MANN | ||
8 | Oil Filter | MANN | ||
9 | Oil-gas separator core | MANN | ||
10 | Pressure Transmitter | MSI USA | ||
11 | Temperature Transducer | MSI USA | ||
12 | Electronic component | Schneider | ||
13 | Automatic Blowdown Valve | SEC Italy |
4. Advantages
- Stainless steel inside structure and connections
- All imported accessories
- High efficiency motor, up to 96%
- Bigger volume air end
- Touch screen control panel
- Factory direct sales, competitive price
- Ensured after sales
- Customization service available
- Quicker response and faster delivery time
- Professional air solution provider, one-stop purchasing
MODEL | MAXIMUM WORKING PRESSURE | FREE AIR DELIVERY* OF UNIT AT WORKING PRESSURE | MOTOR | NOISE LEVEL** | AIR OUTLET DISCHARGE SIZE | WEIGHT | DIMENSIONS | ||||
Bar | PSI | l/s | m3/min | CFM | kW | HP | dBA | KG | L X W X H (mm) | ||
MCS-15Z | 7 | 102 | 42 | 2.50 | 89 | 15 | 20 | 70±2 | G3/4 | 420 | 1200 x 750 x 1020 |
8 | 116 | 38 | 2.30 | 82 | |||||||
MCS-18.5Z | 7 | 102 | 53 | 3.20 | 114 | 18.5 | 25 | 72±2 | G1 | 550 | 1380 x 850 x 1170 |
8 | 116 | 50 | 3.00 | 107 | |||||||
MCS-22Z | 7 | 102 | 63 | 3.80 | 136 | 22 | 30 | 73±2 | G1 | 600 | 1380 x 850 x 1170 |
8 | 116 | 60 | 3.60 | 129 | |||||||
10 | 145 | 53 | 3.20 | 114 | |||||||
12 | 174 | 47 | 2.80 | 100 | |||||||
MCS-30Z | 7 | 102 | 88 | 5.30 | 189 | 30 | 40 | 74±2 | G1 | 650 | 1380 x 850 x 1170 |
8 | 116 | 83 | 5.00 | 179 | |||||||
10 | 145 | 75 | 4.50 | 161 | |||||||
12 | 174 | 67 | 4.00 | 143 | |||||||
MCS-37Z | 7 | 102 | 112 | 6.70 | 239 | 37 | 50 | 74±2 | G1 1/2 | 850 | 1500 x 1000 x 1320 |
8 | 116 | 103 | 6.20 | 221 | |||||||
10 | 145 | 93 | 5.60 | 200 | |||||||
12 | 174 | 82 | 4.90 | 175 | |||||||
MCS-45Z | 7 | 102 | 123 | 7.40 | 264 | 45 | 60 | 74±2 | G1 1/2 | 900 | 1500 x 1000 x 1320 |
8 | 116 | 117 | 7.00 | 250 | |||||||
10 | 145 | 103 | 6.20 | 221 | |||||||
12 | 174 | 93 | 5.60 | 200 | |||||||
MCS-55Z | 7 | 102 | 167 | 10.00 | 357 | 55 | 75 | 75±2 | G2 | 1700 | 1900 x 1250 x 1600 |
8 | 116 | 153 | 9.20 | 329 | |||||||
10 | 145 | 142 | 8.50 | 304 | |||||||
12 | 174 | 127 | 7.60 | 271 | |||||||
MCS-75Z | 7 | 102 | 223 | 13.40 | 479 | 75 | 100 | 75±2 | G2 | 1850 | 2000 x 1250 x 1670 |
8 | 116 | 210 | 12.60 | 450 | |||||||
10 | 145 | 187 | 11.20 | 400 | |||||||
12 | 174 | 167 | 10.00 | 357 | |||||||
MCS-90Z | 7 | 102 | 270 | 16.20 | 579 | 90 | 120 | 75±2 | G2 | 1950 | 2000 x 1250 x 1670 |
8 | 116 | 250 | 15.00 | 536 | |||||||
10 | 145 | 230 | 13.80 | 493 | |||||||
12 | 174 | 205 | 12.30 | 439 | |||||||
MCS-110Z | 7 | 102 | 350 | 21.00 | 750 | 110 | 150 | 75±2 | DN65 | 2700 | 2700 x 1470 x 1840 |
8 | 116 | 330 | 19.80 | 707 | |||||||
10 | 145 | 290 | 17.40 | 621 | |||||||
12 | 174 | 247 | 14.80 | 529 | |||||||
MCS-132Z | 7 | 102 | 423 | 25.40 | 907 | 132 | 175 | 75±2 | DN65 | 2900 | 2700 x 1470 x 1840 |
8 | 116 | 387 | 23.20 | 829 | |||||||
10 | 145 | 342 | 20.50 | 732 | |||||||
12 | 174 | 290 | 17.40 | 621 | |||||||
MCS-160Z | 7 | 102 | 478 | 28.70 | 1025 | 160 | 220 | 75±2 | DN65 | 3200 | 2700 x 1470 x 1840 |
8 | 116 | 460 | 27.60 | 986 | |||||||
10 | 145 | 410 | 24.60 | 879 | |||||||
12 | 174 | 358 | 21.50 | 768 | |||||||
MCS-185Z | 7 | 102 | 533 | 32.00 | 1143 | 185 | 250 | 78±2 | DN80 | 3500 | 3200 x 2000 x 2050 |
8 | 116 | 507 | 30.40 | 1086 | |||||||
10 | 145 | 457 | 27.40 | 979 | |||||||
12 | 174 | 413 | 24.80 | 886 | |||||||
MCS-220Z | 7 | 102 | 600 | 36.00 | 1286 | 220 | 300 | 78±2 | DN80 | 4000 | 3200 x 2000 x 2050 |
8 | 116 | 572 | 34.30 | 1225 | |||||||
10 | 145 | 503 | 30.20 | 1079 | |||||||
12 | 174 | 462 | 27.70 | 989 | |||||||
MCS-250Z | 7 | 102 | 700 | 42.00 | 1500 | 250 | 350 | 78±2 | DN100 | 4500 | 3200 x 2000 x 2050 |
8 | 116 | 675 | 40.50 | 1446 | |||||||
10 | 145 | 637 | 38.20 | 1364 | |||||||
12 | 174 | 575 | 34.50 | 1232 | |||||||
MCS-315Z | 7 | 102 | 850 | 51.00 | 1821 | 315 | 430 | 80±2 | DN110 | 6000 | 3500 x 2000 x 2050 |
8 | 116 | 837 | 50.20 | 1793 | |||||||
10 | 145 | 742 | 44.50 | 1589 | |||||||
12 | 174 | 658 | 39.50 | 1411 | |||||||
MCS-355Z | 7 | 102 | 1067 | 64.00 | 2286 | 355 | 480 | 82±2 | DN110 | 6500 | 3500 x 2000 x 2050 |
8 | 116 | 1017 | 61.00 | 2179 | |||||||
10 | 145 | 942 | 56.50 | 2018 | |||||||
12 | 174 | 817 | 49.00 | 1750 | |||||||
MCS-400Z | 7 | 102 | 1187 | 71.20 | 2543 | 400 | 540 | 82±2 | DN120 | 7200 | 3800 x 2000 x 2050 |
8 | 116 | 1135 | 68.10 | 2432 | |||||||
10 | 145 | 1047 | 62.80 | 2243 | |||||||
12 | 174 | 870 | 52.20 | 1864 | |||||||
*FAD (Free Air Delivery) is full package performance including all losses. Absolute intake pressure 1 bar (a), cooling and air intake temperature 20°C. Tested per ISO 1217: 2009 Annex C. | |||||||||||
** Noise level operation at maximum operating pressure and maximum speed. Tested per ISO 2151 and the basic standard ISO 9614-2. | |||||||||||
Specifications are subject to change without notice. |
6. Application
7. Factory Pictures
8. Packing Pictures
9. FAQ
1) Why customer choose us?
Jiangxi Saifu Industry Co.Ltd provide professional air solution for customers. One-stop purchasing, we can provide the screw air compressor, air dryers air filters and all the spare parts.
2) Where is your factory?
Our factory is in Shanghai,China.Both OEM & ODM service can be accepted.
3) What's your delivery time?
Generally 7 to 10 days, if urgently order, pls contact our sales in advance.
4) How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts.
5) How long could your air compressor be used?
Generally, more than 10 years.
6) What's payment term?
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
7) How about your customer service?
24 hours on-line service available. 48hours problem solved promise.
8) How about your after-sales service?
a.Provide customers with installation and commissioning online instructions.
b.Well-trained engineers available to overseas service.
c.Worldwide agents and after service available.
