Product Description
Main Features:
Technical Specifications
Product Application:

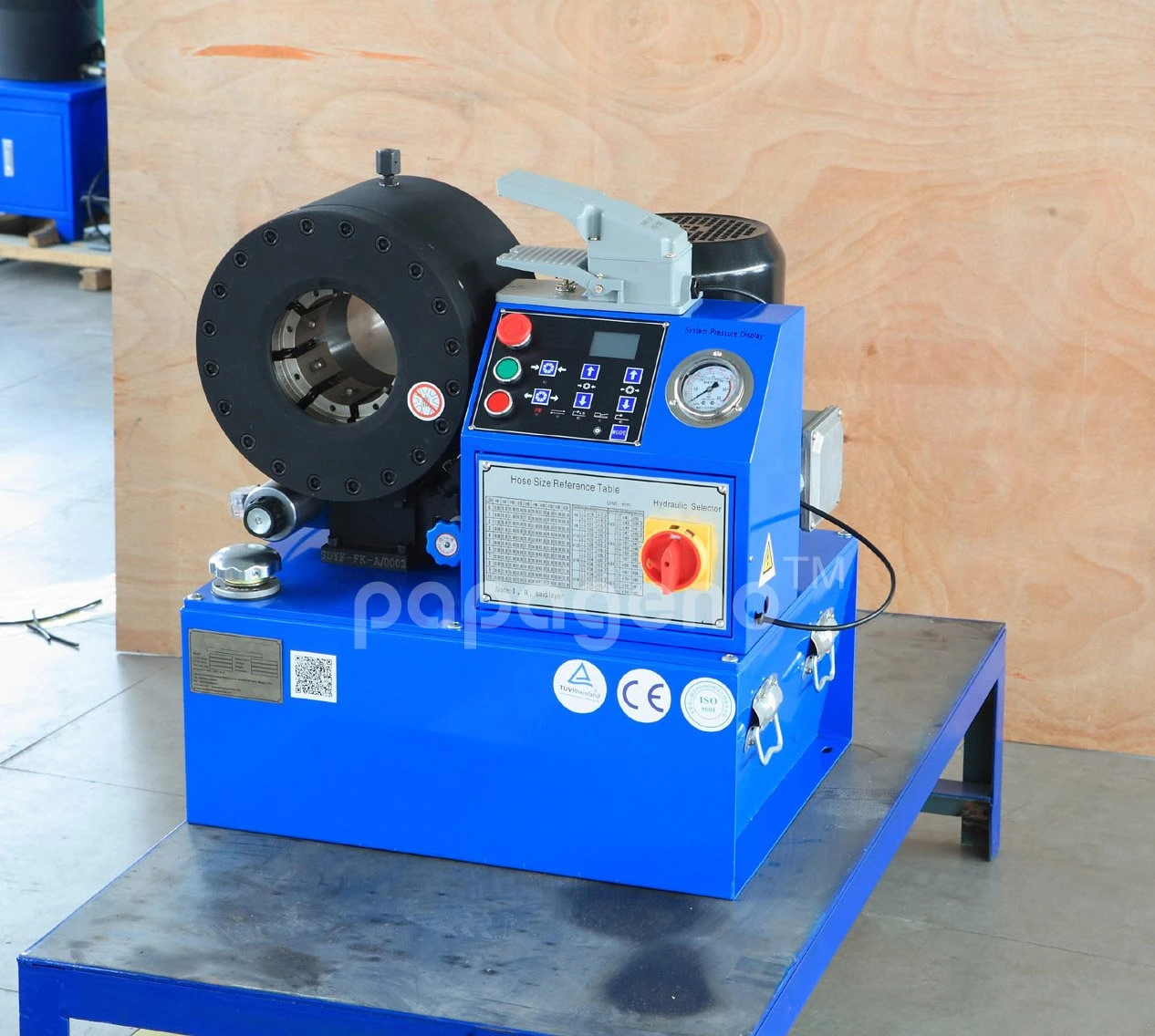

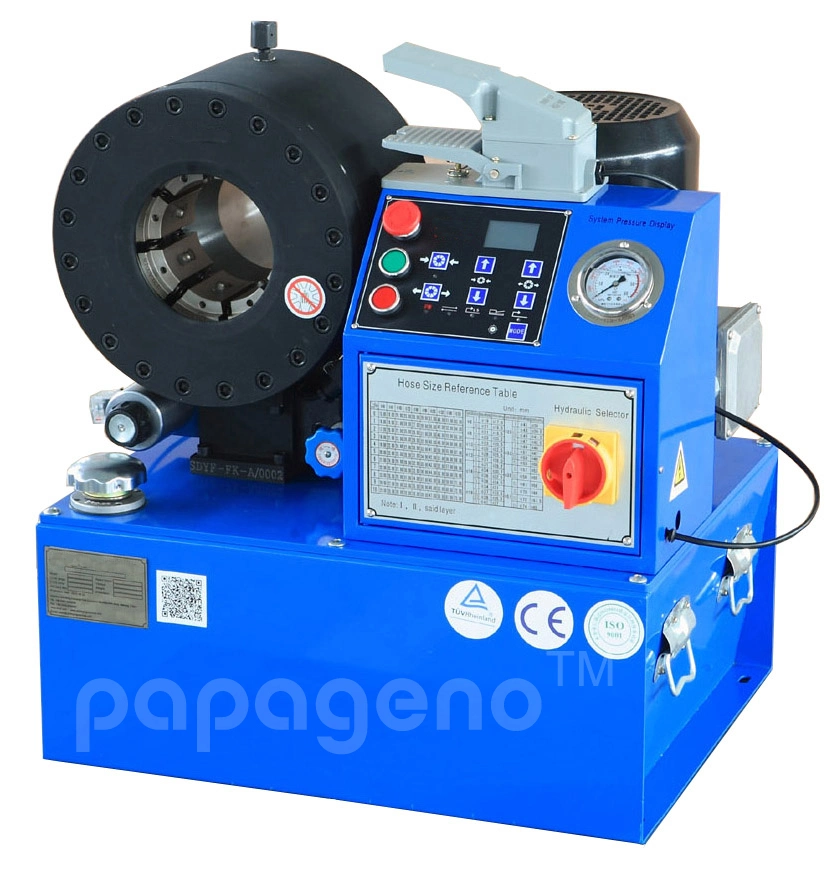

Model HYSW-129CNC crimping machine has equipped with computer numerical control system, fast crimp and good quality. This machine features high crimp accuracy, big force, low noise and easy to operate. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. HYSW-129CNC crimper is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. It can also be used for crimping steel pipes, especially large pipes and irregular shape pipes.
Main Features:
- Forge steel machine head, more durable than general steel.
- CNC operation panel, easy control and operation.
- CNC system, high crimp accuracy within 0.01mm.
- Equipped with a foot pedal, free hand operation.
- Magnetic dies (Patented), very convenient to remove and install dies.
Technical Specifications
| Technical Specifications | |
| Product: | Crimping Machine |
| Model Number: | HYSW-129CNC |
| Dies Base | Include dies Base |
| Operation Mode: | CNC/Automatic |
| Crimp Capacity: | 2SN, 4SP |
| I.D: | up to 2 inch / 51mm |
| Capacity: | 2 braided wire: 2" 4 spiral wire: 2" |
| Crimp force: | 3600kN |
| Standard dies: | 14 sets |
| Voltage: | 220v 1ph / 380v 3ph |
| Motor Power: | 3kw / 4kw |
| Noise level: | 65dB |
| Net Weight: | 300kg |
| Size: | 700×580×1350mm |
| Gross Weight: | 330kg |
| Package: | Machine:670×550×810mm |
| Dies base: 800×680×700mm | |
| Other: | Quick change tools,Foot pedal |
Product Application:
Model HYSW-129CNC crimping machine has equipped with computer numerical control system, fast crimp and good quality. This machine features high crimp accuracy, big force, low noise and easy to operate. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. HYSW-129CNC crimper is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. It can also be used for crimping steel pipes, especially large pipes and irregular shape pipes.
Scope Of Application Of Crimping / Swaging Machines:
Company Strength:- All kinds of construction machinery, engineering vehicles, excavator, loader, earthmover, truck crane etc.
- Workshop hydraulic equipments.
- Mining hydropost, Automobile hoist pillar.
- Oil pipeline,Pipe or tubes for Automobile service.
- Teflon tubes.
- Electric cable conductor.
- Concrete pipe.
- Water, air, PVC, steam pipes.
- heavy calibre industrial tube.
- fire service pipe
- All kind of steel, aluminium tubes
- Non-trace Swaging machine
- Steel wire, Rebar Coupler.Air-springs / Suspension.
