Item | No.of Cartridges | A | B | C | D | E |
| ZTDX-1R10 | 1*10'' | 708 | 300 | 102 | 260 | 210 |
| ZTDX-1R20 | 1*20'' | 958 | 550 | 102 | 260 | 210 |
| ZTDX-1R30 | 1*30'' | 1208 | 800 | 102 | 260 | 210 |
| ZTDX-1R40 | 1*40'' | 1408 | 1000 | 102 | 260 | 210 |
Description

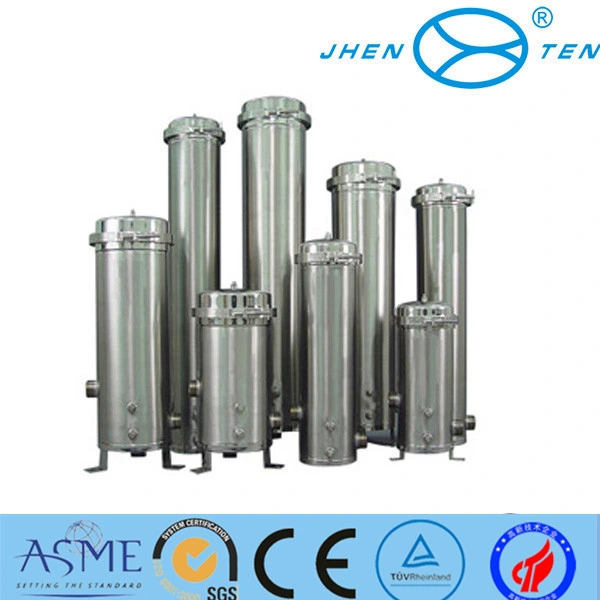

Jhenten cartridge sanitary filter housing Surfaces are polished to 0.3μm Ra for fast and easy surface cleaning, which minimizes the risk of contamination, improves cleanability and enhances corrosion resistance.sanitary vents and drains facilitate sampling,integrity testing,venting,safe and easy draining. proper O-ring seal for 222 or 226 single -open-end element seals.
optional sanitary drain and vent valves enable complete drainage of liquids after filtration and simplify filter removal
Typical application
pharmaceutical
veterinary
Food &Beverage
Biotechnology
Medical &medical Device
Laboratory
Chemical and painting industrial filtration
| Name | Inner |
| Max Operate Pressure | 1.0 |
| Max operate temperature | 110ºC |
| Pressure tolerance on weld | 0.85 |
| Corrosion by acid | 0 |
| Dimension Parameters | 5R(4R) | 7R | |||||
| 10" | 20" | 30" | 40" | 20" | 30" | 40" | |
| A:Total height | 570 | 820 | 1070 | 1320 | 820 | 1070 | 1320 |
| B:The distance from inlet to center | 175(Flange);125(Tri-clamp);130(Thread) | 190(Flange);140(Tri-clamp);145(Thread) | |||||
| C:Shell diameter | Φ204 | Φ235 | |||||
| D1:The height from inlet to ground | 178 | 178 | |||||
| D2:The height from outlet to ground | 76 | 76 | |||||
| In-outlet N1,N2 size | 2" | 2" | |||||
