Construction:

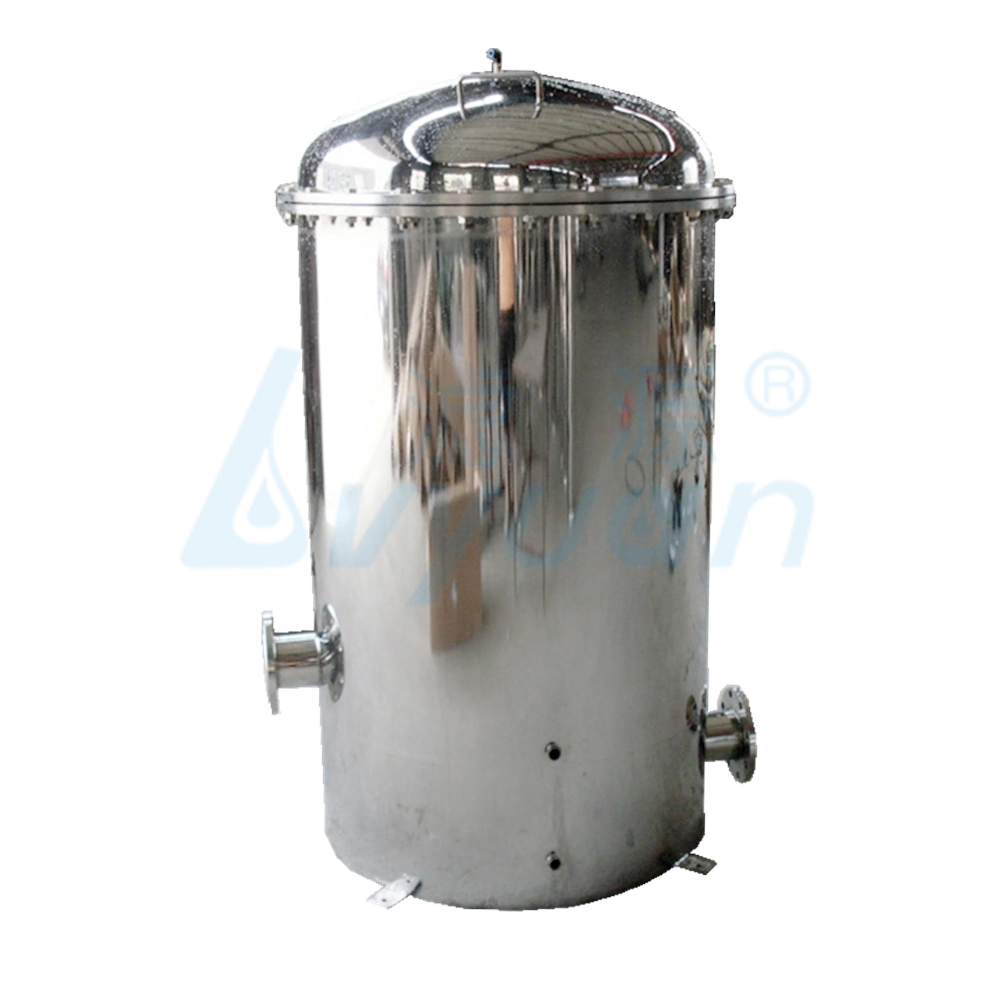

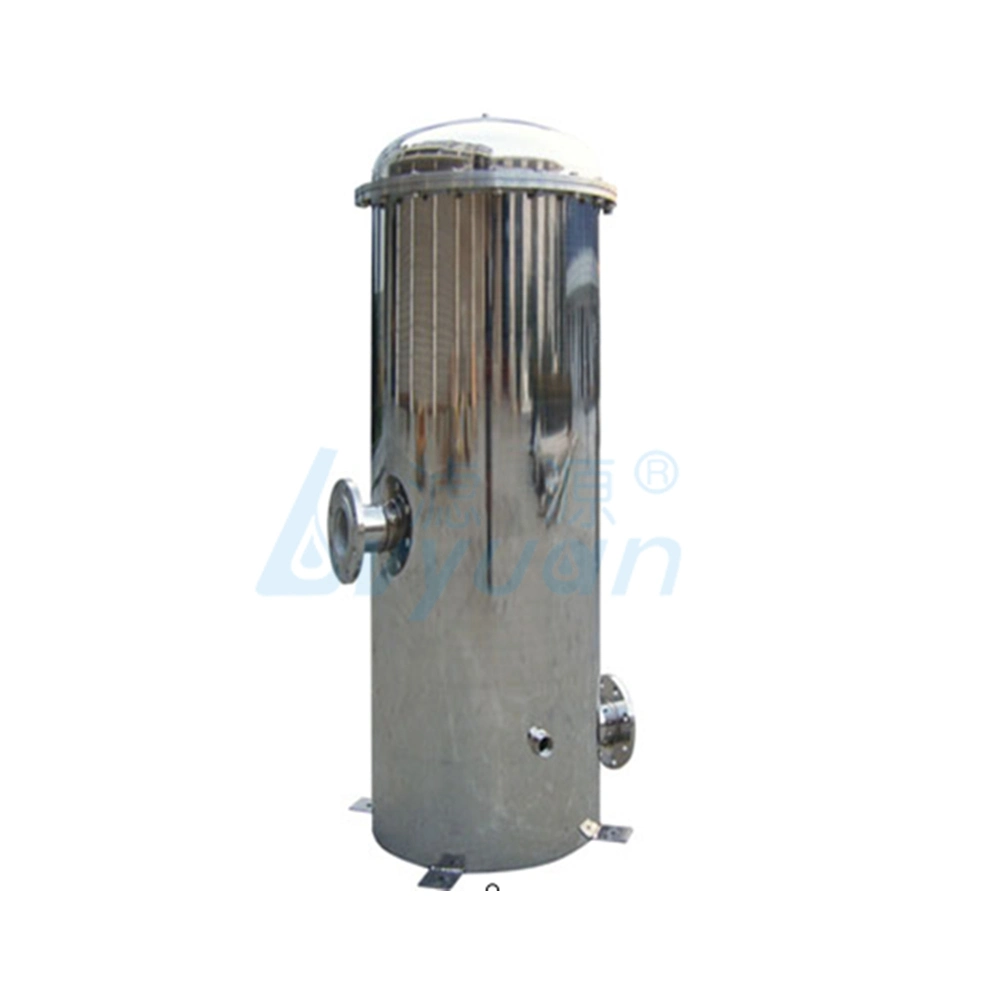

The cartridge filter housing is a stainless steel housing with a filter cartridge inside.
How the cartridge filter housing working?
Under the influence of pressure, The liquid into the interior of the filter, Impurities are trapped on the filter element,The filtrate flows through the filter core to achieved the purpose of filtration.
How the stainless steel filter housing use for ?
This generally occurs after multi-media pretreatment filtration, before reverse osmosis, ultrafiltration, etc. membrane filtration equipment. It is used to filter out fine substances (such as tiny quartz sand, activated carbon particles, etc.), bacteria and other impurities filtered by the multi-media.
How could I choose the filter housing ?
According to select different use occasions, different filter precision filter elements, In order to ensure the water into RO membrane safe and the quality of outlet water.
what is the filtration working principle?
The working principle is Mechanical filtration using different precision pores of the filter element. all contaminants can be trapped in the filter cartridges surface and in the pores because of the flow direction.
How could I need to replace the filter element?
As the filtration time increases, the filter element is contaminated by impurities.The running resistance increases, and when the operating pressure difference between the inlet and outlet water reaches 0.1 MPA, the filter element should be replaced.
what is the cartridge filter housing's advantage?
High efficiency, low resistance and easy replacement.
LY-FL05 Stainless Steel Filter Housing standard Specification:
Material | SUS304, SUS316 |
Cartridge length | 10'', 20'', 30'', 40'' |
Cartridge Quantity | 5 to 30 pcs for option |
surface treatment | Polishing or matte treatment |
Top Cap installed type | flange type |
Inlet/outlet connection | flange type, or customized |
Usage | liquid filtration |
Accept | OEM |
Seal O-ring | silicone, NBR, EPDM, Viton |
Different stainless steel multi-cartridges filter housing are customized, as long as you offer us picture and drawing.
with years of manufacturing stainless steel filter housing, We accept customized specification,as long
as you offer the drawing or picture.
Application:
1. Medical industry 2. Chemcial industry
3. Electronic industry 4. Food and beverage industry
5. Biochemical Industry 6.Water treatment
7.Environment Industry 8. other industries.
certificates:
About us
1. 10 years professional manufacturer experience.
2. We provide OEM and ODM customization service, you can find all kinds of filter cartridges and filter housings in our company.
3. All products have quality warranty. Our Certification: CE ISO SGS
4. Our workers are efficient and our sales are professional, We will give the professional customized service.
5. Our products are exporting to more than 100 countries and regions. Received a good reputation.
6. Many cooperator stand by us for many years.
7. We are determined to provide the best service and good quality to our global customers, we will be more and more professional company in the feature.
Our service
We bulit a long-term cooperate relationship with our customers and earn a good reputation from our customer, join us and let's us get start bussiness plan.
1. Accept customized lengtht, Package, logo etc, as you offer your drawing and picture.
2. Accept Sample purchase order. ( Accept FILTER CARTRIDGE MOQ=10. filter housing MOQ=1)
3. We will reply to you in 24 hours.
4. Received the payment, we will contact you at the first time and arrange the production and let you know the lastest process.
5. Any doublt, pl contact with us, we will help you solve the problem asap.
